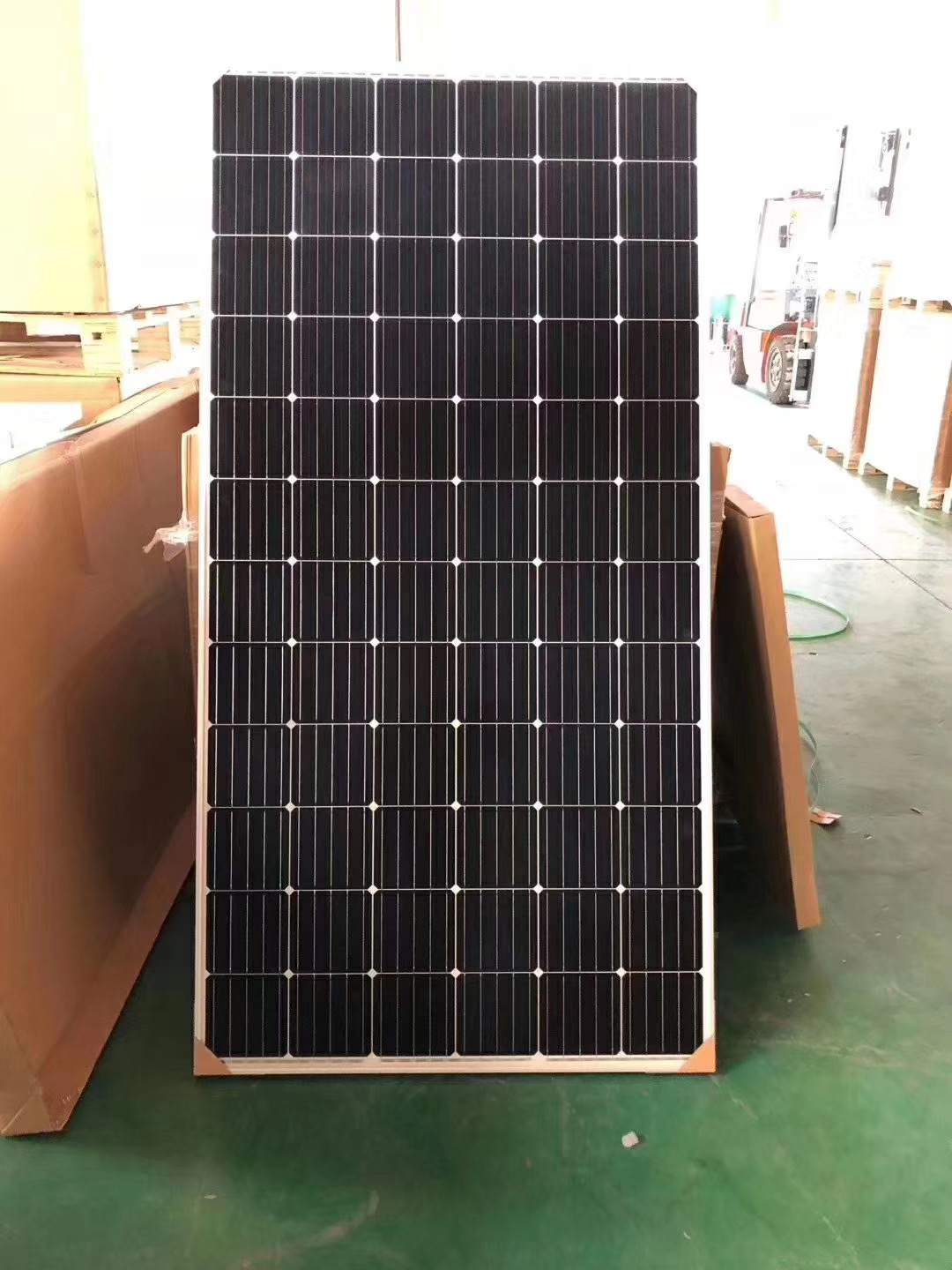

340W MONO

Mechanical Parameters
Cell Type		Mono-crystalline 156x156mm (6inch)
No. of Cells		72 (6×12)
Dimension		1956x990x40/45/50mm
Glass		3.2mm, High Transmission, Low Iron, Tempered Glass
Junction Box		IP65&IP67 Rated
Output Cable		Section Size: 4mm² , Length: 900mm
Frame		Anodized Aluminum Alloy
No. of Bypass Diodes		3&6
Connector		MC4 Compatible
Working Conditions
Maximum System Voltage		DC 1000V(IEC) / 1500V(IEC) / 600V(UL)
Operating Temperature		-40°c~+85°c
Maximum Series Fuse		15A
NOCT		45±2°c
Application Class		Class A
Temperature Coefficient
Temperature Coefficient of Pmax		-0.40%/°c
Temperature Coefficient of Voc		-0.30%/°c
Temperature Coefficient of Isc		+0.05%/°c

Categories: Hot selling, Yanger MONO

Model	YS320M-72	YS330M-72	YS340M-72	YS350M-72	YS360M-72	YS370M-72	YS380M-72
Rated Maximum Power at STC	320W	330W	340W	350W	360W	370W	380W
Maximum Power Voltage (Vmp)	36.2V	38.3V	38.7V	39.1V	39.5V	39.9V	40.3V
Maximum Power Current (Imp)	8.29A	8.62A	8.79A	8.94A	9.12A	9.27A	9.43A
Open Circuit Voltage ( Voc)	45.2V	46.7V	47.1V	47.5V	48.0V	48.4V	48.8V
Short Circuit Current (Isc)	8.77A	9.10A	9.24A	9.38A	9.51A	9.64A	9.77A
Module Efficiency	15.54%	17.01%	17.52%	18.04%	18.55%	19.07%	19.59%
Power Tolerance	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%
STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5
