Parameter
| MECHANICAL SPECIFICATION | |||
| Format | 1998*994*6mm | ||
| Weight | 28.5kg±3% | ||
| Cell | 72(6 x 12) polycrystalline cells | ||
| Junction Box | Protection class IP67, with bypass diodes | ||
| Cable | 4mm² Solar cable | ||
| Connector | MC4 Compatible | ||

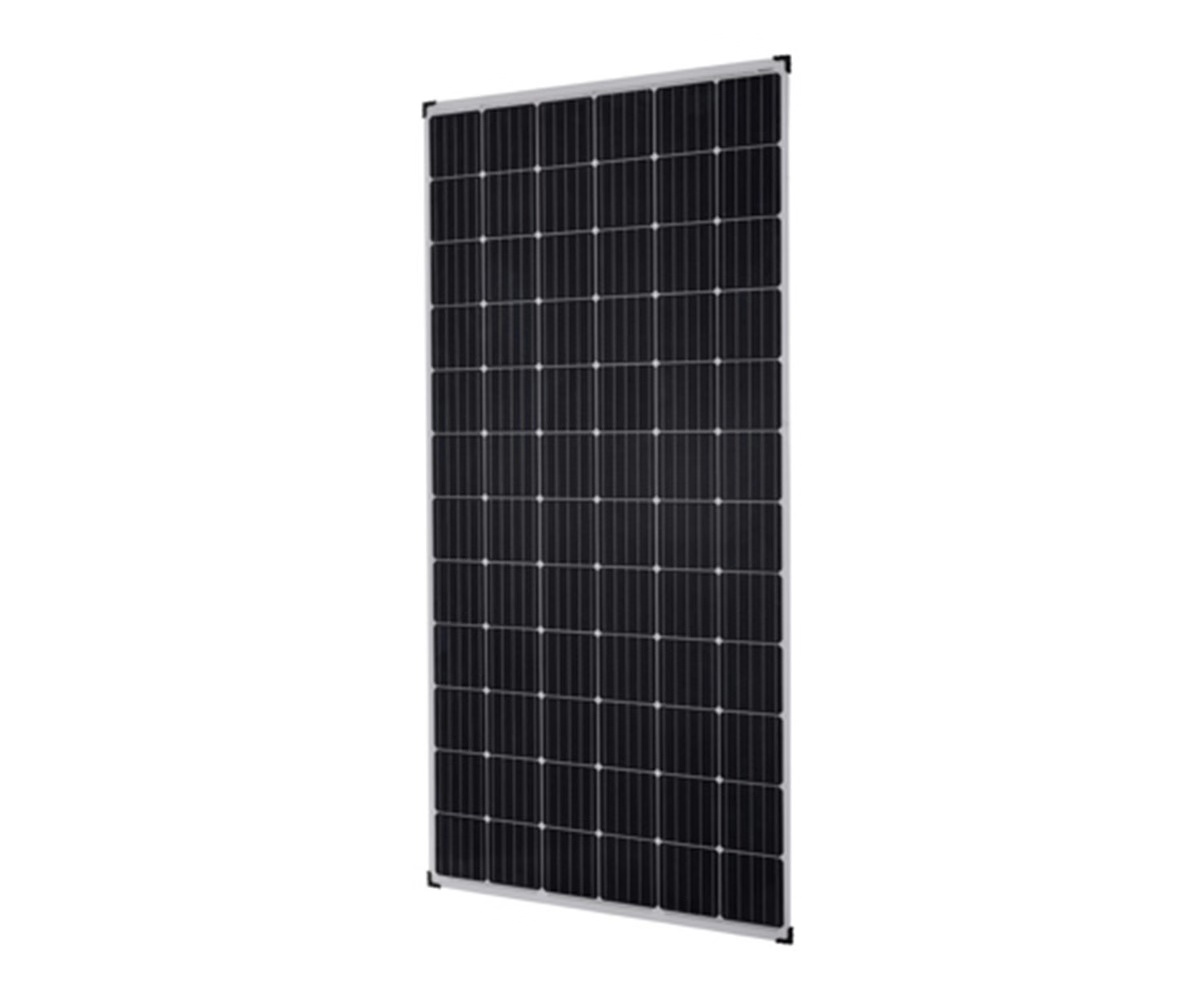

Ye Solar Double Glass Bifacial Perc Mono Solar Panel 380W 72 Cells Solar Panels
Description
| ELECTRICAL CHARACTERISTICS | |||
| minimum performance at standard test conditions,stc1 (power tolerance -0~+5w) | |||
| Model | 380W | 385W | 390W |
| Max. Power | 380W | 385W | 390W |
| Open Circuit Voltage | 48.81V | 49.11V | 49.42V |
| Short Circuit Current | 10.03A | 10.09A | 10.14A |
| Max. Power Voltage | 40.02V | 40.33V | 40.63V |
| Max. Power Current | 9.50A | 9.55A | 9.65A |
| Efficiency² | 19.1% | 19.4% | 19.6% |
